Main Features and Specifications

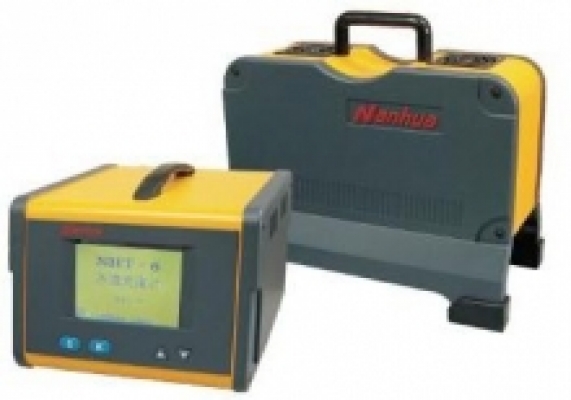

Split structure, separated measuring unit and control unit for easy operation. Large LCD screen, Chinese or English interactive menu
with opacity reading and light absorption coefficient reading, simple, direct and convenient operation. With functions of free acceleration test and measurement of transients, automatic process of test data and display of measuring results. With functions of License Plate Number entry, save, data view. 15 minutes warm-up time, automatic zero reset. With adoption of advanced partial flow technology,
measuring unit tests smoke emissions of dieselpowered
vehicles directly. "Scavenge air curtain" technology prevents the optical system from being polluted. With constant temperature control in the sample cell, it can avoid condensation and influence of
accuracy due to change of temperature.Equipped with oil temperature temperature measurement probe.
Equipped with RS-232C digital serial interface for ommunication
with external computer.The performance meets the performance
meets the requirements of ISO11614 and GB3847-2005.
Main Technical Specifications
Measuring Range Measurement Accuracy Opacity(uncorrected): ±2.0% (abs.) Revolving Speed (piezoelectric): ±1.0% (rel.) Oil Temperature: ±2℃ (abs.) Effective Length of Optical Path: 215mm Equivalent Length of Optical Path: 430mm Length of Sampling Probe: 2.5m Power Consumption: 200W Power Supply: AC220V ±10% 50Hz ±1Hz Weight |
|
Outer Dimension:Opacity: 0 99.99 %, Light Absorption Coefficient: 0 16.0m-1,
Revolving Speed: 300 9999 rpm
Oil Temperature : -50 120
Resolution:Opacity: 0.1 %,Control unit: 5.5Kg(Including the printer)
Measuring unit: 6.5Kg
Control unit: 370mm(W) 280mm(D) 220mm(H)
Measuring unit(Including the supports): 410mm(W) 215mm(D) 360mm(H)
Hệ thống, Thiết bị đã được lắp đặt tại rất nhiều Nhà máy và Gara trên cả nước : Nhà máy Ô tô Hyundai thành công - Ninh bình, Đông Anh; Ô tô 3/2 - Hưng yên ; Ô tô 1/5 - Đông Anh; Ô tô Ngô Gia tự - Hưng yên; Ô tô Trường Giang Đông phong 1, 2 - Hưng yên; Ô tô Chiến thắng - Hải phòng; Ô tô Việt trung - Hải Dương; Xưởng dịch vụ DENSO - Mỹ đình, ... Hệ thống đã được Cục đăng kiểm chứng nhận chất lượng và sử dụng hiệu quả, ổn định tại các nhà máy.
