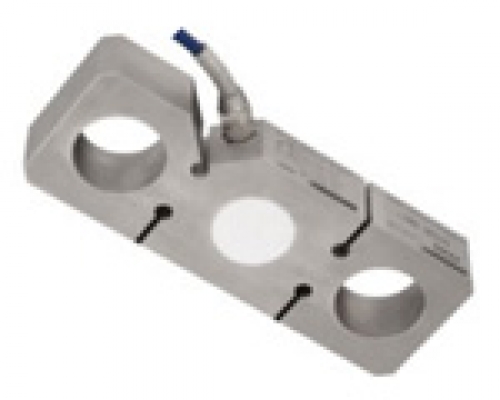

Execution standard: GB/T 7551-1997 Certificate (eqv OIML R60) Combined error: 0.015% Sealed to IEC 529: Protection grade: IP67 or IP68. Protection against total immersion in water for 30 minutes at a pressure corresponding to a 1 m head of water. |
|

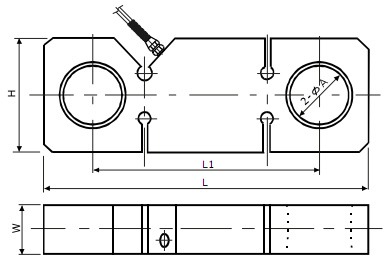

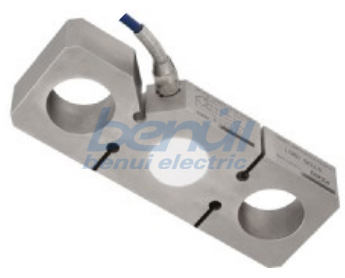

Dimensions
(In mm. 1mm = 0.03937 inches)
CAP./SIZE |
L |
L1 |
H |
W |
ΦA |
Shackle |
Hook |
1~5t |
230 |
160 |
76 |
34 |
38 |
7/8 |
5/8 |
10t |
280 |
1 88 |
90 |
47 |
40 |
11/4 |
3 4 |
2 0~30t |
370 |
230 |
125 |
55 |
53 |
13/4 |
- |
4 0~50t |
430 |
260 |
150 |
65 |
73 |
21/2 |
- |
60t |
430 |
260 |
150 |
85 |
73 |
21/2 |
- |
10 0~120t |
580 |
340 |
220 |
115 |
98 |
31/2 |
- |

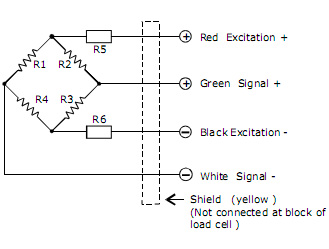

Circuit Diagram:
Electrical Termination
4 Core cable standard lengths:
1~5t: 6 m,10~30t: 10.0 m, >=40t: 18m
Diameter: Φ6
Connection:
Refer to the following drawing:
Notice: Do not change the length of cable, or lese, it will effect the sensitivity of loadcell.
Specification
Item Parameter |
C3 |
Unit |
Rated load (Emax): |
1~120 |
t |
Maximal numbers of load cell verification Intervals (Nlc): |
3000 |
d |
Minimum load cell verification intervals Intervals ( Vmin): |
0.01 |
% of rated load |
Rated output (Cn): |
2.0±5% |
mV/V |
Combined error: |
0.015 |
-% of rated output |
Temperature effect on sensitivity(Tkc): |
0.0012 |
=% of rated output/ |
Temperature effect on zero balance(Tk0): |
0.0008 |
-% of rated output |
Zero balance: |
1.0 |
-% of rated output |
Input resistance(Rlc): |
385±5 |
Ω(Ohms) |
Output resistance(Ro): |
351±2 |
Ω(Ohms) |
Insulation resistance: |
≥5000 |
MΩ (Mega-Ohms) |
Safe overload: |
150 |
% of rated capability |
Ultimate overload: |
300 |
% of rated capability |
Operating temperature range: |
-20~+70/-20~+160 |
℃/ °F |
Recommend excitation: |
8~15 |
V( DC or AC) |
Maximum excitation: |
18 |
V( DC or AC) |
Material of elastomer: |
Alloy steel / Stainless steel |
|
Protection class: |
IP67/IP68 |
