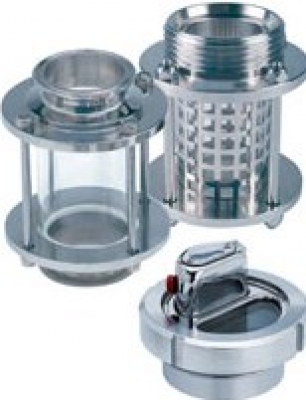

Applications SJ-S sight glass is a straight type sight glass which can observe from 360 degrees. Metal protection net is available. It can be installed horizontally or vertically, and used for pipeline inspection. SJ-U sight glass is a union type sight glass easy to disassembly and assembly. It is used for observing tank equipment |
|
Technical Data
Metal material |
Product wetted |
316L (DIN-1.4404) |
Non-product wetted |
304 (DIN-1.4301) |
|
We can provide EN 10204 3.1B certificate. |
||
Sight glass |
Pyrex glass (Straight sight glass) |
|
Pyrex glass/tempered glass (Union sight glass) |
||
Seal material |
Standard |
EPDM |
Options |
FPM, Silicone, PTFE, NBR |
|
All seal materials comply with FDA 177.2600. |
||
Temperature range |
-20°C ~ +135°C (EPDM) |
|
Surface treatment |
Internal surface |
Ra≤0.8µm |
External surface finish |
Ra≤1.6µm |
|
Connection |
Connection methods: welding, thread, clamp, flange |
