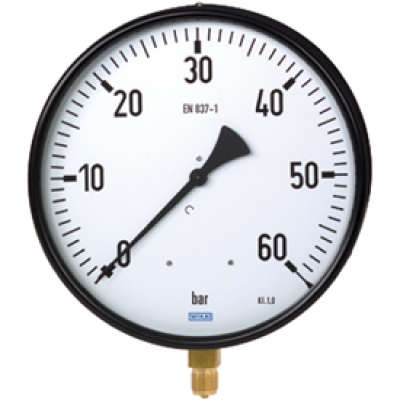

Application
Capsule pressure gauges are designedfor extremely low pressureof gas which is not explosive and corrosive to copper and alloy. Hakin capsule pressure gauges are widely used on boilers, gas piping, combustion train and other analogous devices.
Material
Pressure element: capsule, brass
Movement: phosphor bronze
Dial: aluminium, white, black lettering
Pointer: aluminium, black
Case: steel with black paint or steel chromeplate
Window: general glass
Working temperature: -40℃~+70℃,Relative Humidity: ≤ 85%
With zero adjustment
Connection thread and scale can be optional.
Model |
Range |
Diameter |
Connection |
Accuracy |
Y - 60 |
0-1.6 to 0-60 |
60 |
M14*1.5 |
1.0 | 1.6 | 2.5 |
Y - 100 |
0-1.6 to 0-60 |
100 |
M20*1.5 |
1.0 | 1.6 | 2.5 |
Y - 150 |
0-1.6 to 0-60 |
150 |
M20*1.5 |
1.0 | 1.6 | 2.5 |
Y - 200 |
0-0.16 to 0-60 |
200 |
M20*1.5 |
1.0 | 1.6 | 2.5 |
