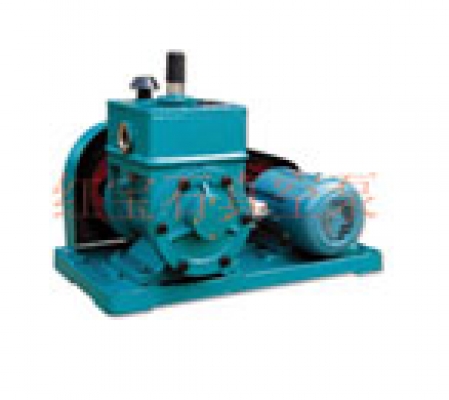

2X-4A 2X Belf Vacuum Pump
Model |
2X-4A |
|
Bleed(L/S) |
4 |
|
Ultimate pressure(pa) |
6×10-2 |
|
Rotating speed(r/min) |
450 |
|
Motor power(KW) |
0.55 |
|
Voltage(v) |
220/380 |
|
Intake caliber(mm) |
Inside diameter |
25 |
Outer diameter |
30 |
|
Dimension(mm) |
long |
540 |
width |
335 |
|
high |
380 |
|
Weight(KG) |
55 |
This series if pumps are elementary equipment for pumping air from sealed vessels. It can be used alone, also can be used as the forepump, process pump or titanium pump of booster pump, oil diffusion pump, and molecular pump. It is applicable to vacuum coating, vacuum heat treatment, vacuum smelting, vacuum tube, bulb, refrigeration, chemicals, packing, forming, health and medical appliances, laboratory, vacuum drying machines and vacuum filtering.
