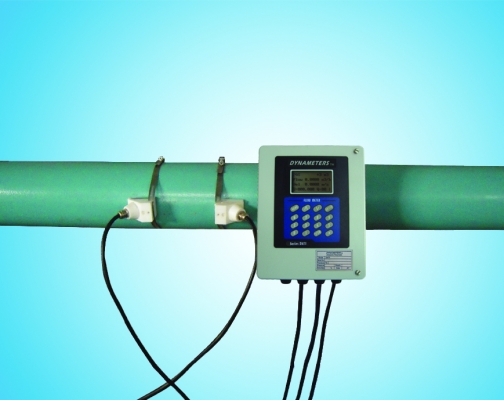

Series DMTFB wall-mount Clamp-on Transit Time Ultrasonic Flow Meter
Features
- Due to the non-invasive nature of the clamp-on technology, there is no pressure drop, no moving parts, no leakage, no risk of contamination and corrosion.
- Measurement is independent of fluid conductivity with wider applications than magnetic meters.
- Non-invasive, NEMA 4X (IP65) clamp-on transducer is easy to install and cost efficient. Since the transducers do not contact with the liquid, fouling and maintenance are eliminated.
- Parallel operation of positive, negative and net flow totalizers with multiplier, while the output of totalizer pulse or flow rate frequency output are transmitted via open collector terminal.
- Standard type and Explosion-Proof ATEX(ExdIIBT6; LCIE 09 ATEX 3008) type are available, with wide operating temperature range : -40℃~250℃.

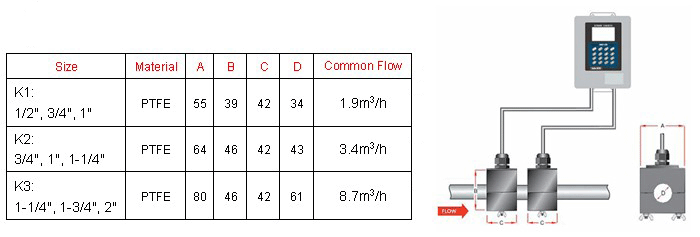

- Wide range of pipe sizes from DN15 to 4500.
- Clamp-on transducers require no pipe cutting or processing interrupted.
- Wide bi-directional flow range of -40 to 40 ft/s (-12 to 12 m/s).
- Up to 8GB SD card data logger can memory flow rate, total flow, velocity and time. Time interval can be freely setup by user.
