DMTF Ex - Explosion Proof Transit Time Ultrasonic Flow Meters

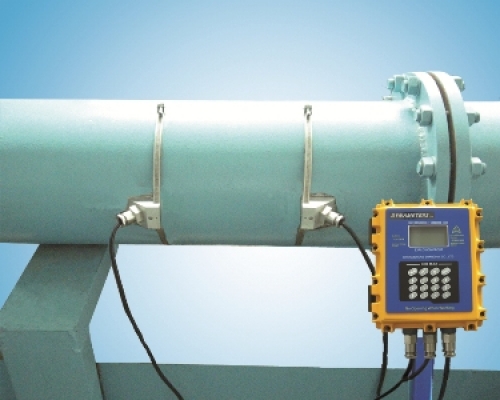

Series DMTFB&C Explosion-proof Clamp-on and Insertion Transit Time Flow Meters provide abundant capabilities for accurate liquid flow measurement from outside of a pipe. It utilizes state-of-the-art technologies in ultrasonic transmission receiving, digital signal processing and transit-time measurement. The proprietary signal quality tracking and self-adapting technologies allow the system to optimally adapt to different pipe materials automatically.
The flow meters of the DMTF family are carefully designed with their user-interfaces self-explanatory and their operation simple and easy. The unique clamp-on fixture design makes the installation very simple, requiring no special skills or tools.
Due to the non-invasive nature of clamp-on transducers, there is no pressure drop, no moving parts, no leaks, and no risk of contamination or corrosion.
Features
Non-invasive explosion-proof clamp-on and insertion transducers Bi-directional flow measurement Able to measure positive, negative and net total flow Standard type and Explosion-Proof type are available Can measure pipe sizes from DN50-4500 Measurable temperature range: -40℃~250℃ Easy operation and quick installation |
|
Applications Petrochemical Industrial process control system for detection Control of building automation Hydraulic and pneumatic control Power plant operation inspection Environmental protection Chemicals, including alcohol, acids, etc HVAC, energy measurement system Beverage, food and pharmaceutical processors |
